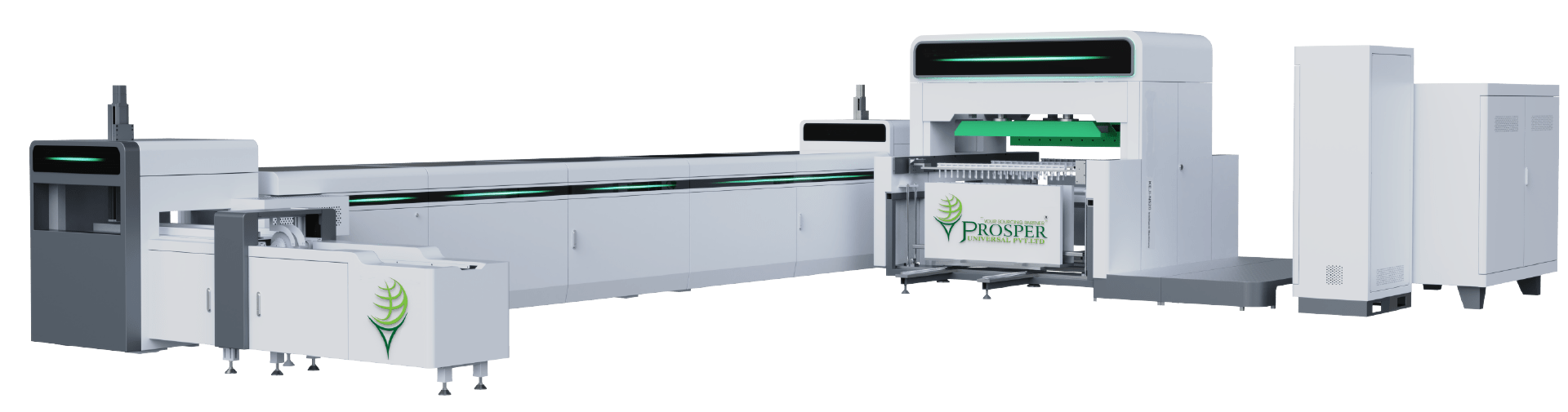

Laminating &
Die- Cutting Machine
- Model No : PR400 - Part 1
- Mold Size : 400*500MM Mold Raw Material: D2/OHNS

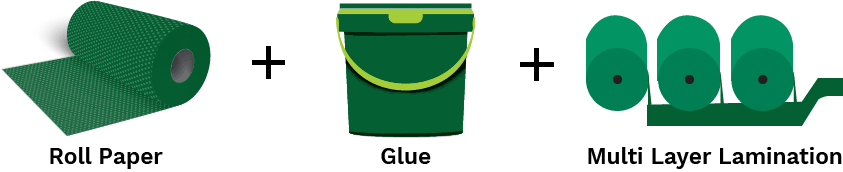

Machine Cycle
Roll Paper
Glue
Multi Layer Lamination
Cut

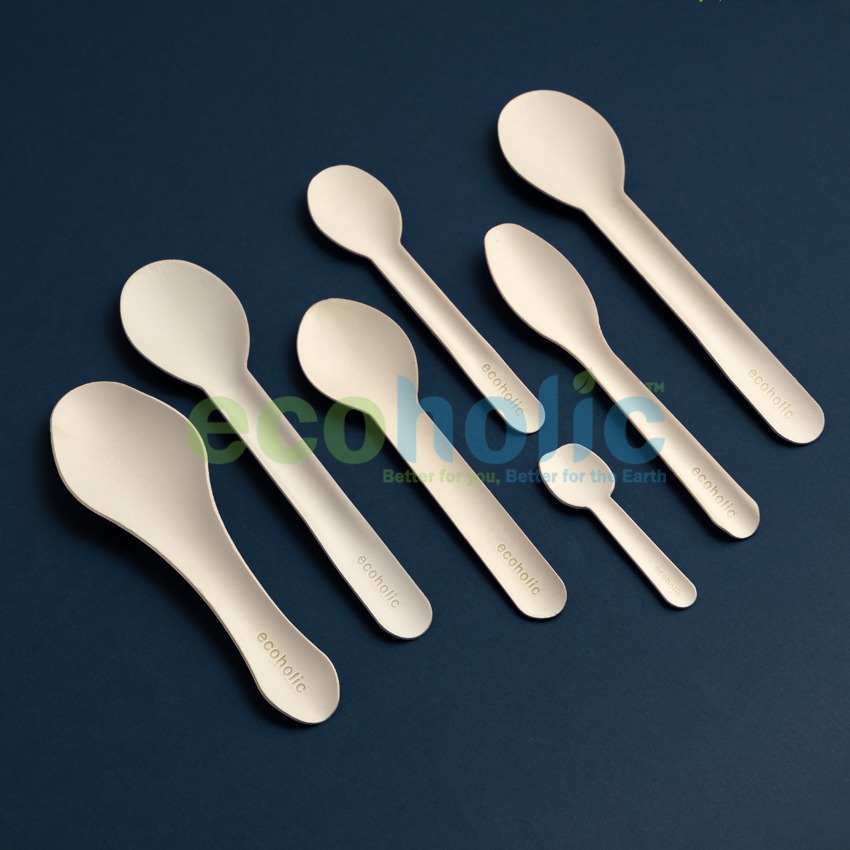

Prosper Universal is a leading paper cutlery machine manufacturer in India, offering advanced paper cutlery machine solutions for efficient production of paper spoons, forks, knives and other disposable cutlery. The paper cutlery machine is designed with specialized stations for processing, bonding and preparing multiple layers of paper. Controlled heat and pressure create a strong bond, while automated controls, safety guards, sensors and emergency stop systems ensure reliable and safe operation. With its efficient design, the paper cutlery machine supports consistent production and high-quality output.
In the next stage, the processed material moves into the precision die-cutting section of the paper cutlery machine. Advanced servo-driven mechanisms and customized moulds accurately cut and shape the material according to the required product design. This paper cutlery machine helps manufacturers achieve uniform dimensions, clean edges and consistent results while reducing material wastage. As an experienced paper cutlery machine manufacturer, Prosper Universal provides reliable machinery solutions designed for modern paper cutlery production.

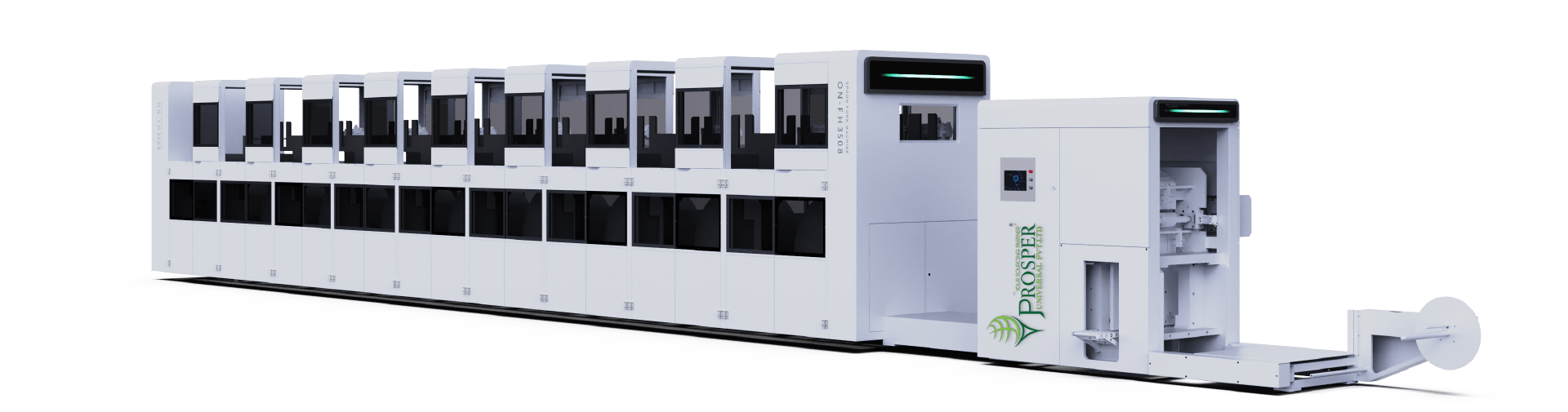

Forming
& Sealing Machine
- Model No : PR400 - Part 1
- Mold Size : 400*500MM Mold Raw Material: D2/OHNS
Machine Cycle
Forming + Sealing
Food Graded
Chemical Coating
Finish Product
Paper Cutlery Machine
Manufacturer in Rajkot Gujarat India.
A storage mold facilitates the transfer of products from the Laminating & Die-Cutting machine to the forming & sealing machine. The forming & sealing machine, featuring two forming stations, is primarily responsible for embossing the product. Utilizing electric heating technology, the nozzle retrieves the product from the storage mold and transports it to the hydraulic pressing mold for embossing.
Following the completion of the embossing process, the product is deposited onto the deep-link chain conveyor belt and automatically introduced into the rotating holding assembly for the coating process. This assembly houses a coating tank containing a mixture of oil and water resistance chemical. The tank is elevated, immersing the products in the solution. Prosper Universal is biodegradable paper cutlery making machine Manufacturer in Rajkot Gujarat India. Any surplus coating is subsequently eliminated using a vacuum connected to a blower Subsequently, the product undergoes additional heating in the heating section through a dry air heating system.
Prosper Universal is Biodegradable Plate Making Machine manufacturers, Biodegradable Plate Making Machine suppliers, exporters and Paper Cutlery Machine Manufacturer in Rajkot Gujarat India.
Technical
Details
Material
Applicable ProductsAll type of paper cutlery (As per machine capability) |
|
Raw MaterialFood Grade Paper & Food Grade Glue (Raw paper is similar to paper straw raw material without PE coating) |
|
Forming Pressure50T |
Max Paper Layers9 Layers |
Paper Thickness of Standard Mold800-1000gsm |
|
Speed
Cutting Speed200-400pcs/Min (as per cutlery size) |
|
Forming Speed80-100pcs/min |
Total Power
Total Power150 KW |
Required Air and Power Supply
Air1.0m3/Min |
Power Supply(3 Phase, 4 Wire) 420V, 50HZ |
Installation Area Weight
Overall Size150 M2 (5000 sq.ft.) |
Gross Weight15 MT |

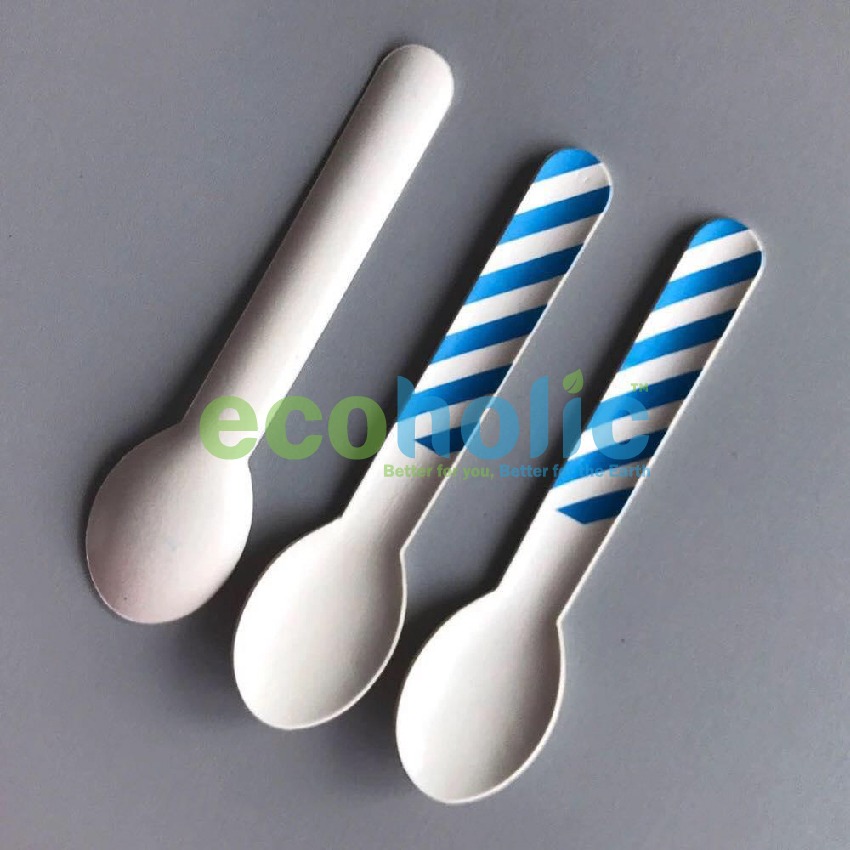

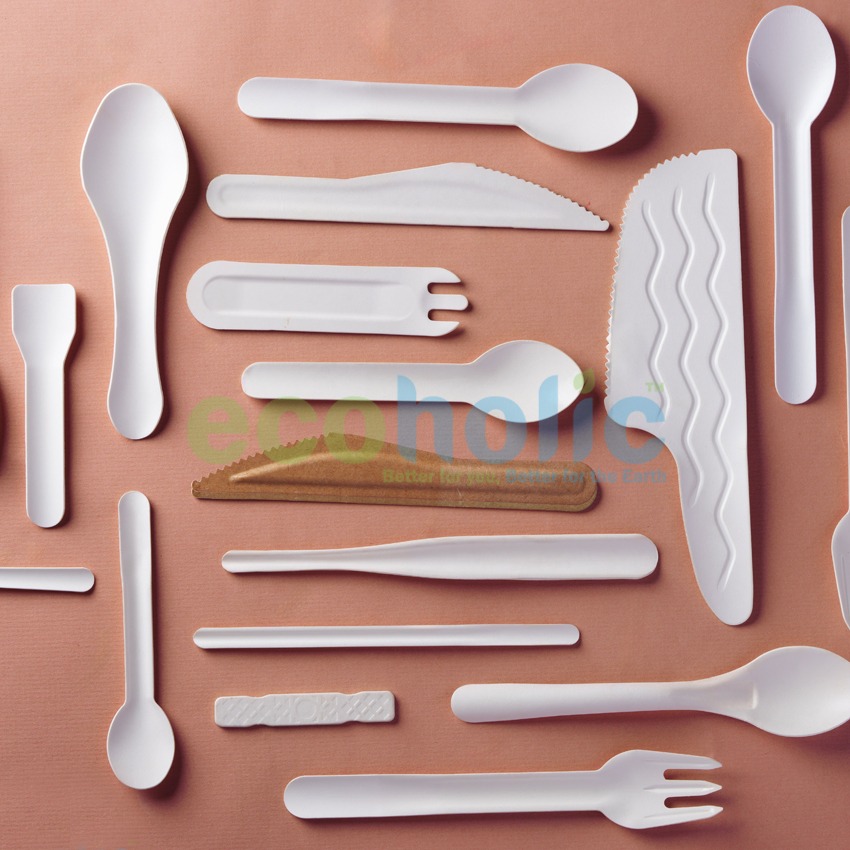

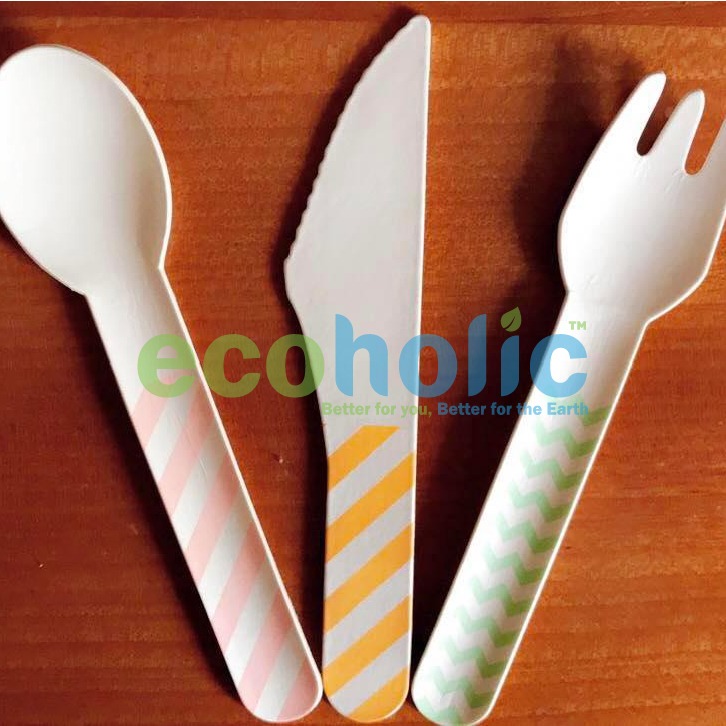

Applicable Products
Machine
Features
01
Layer Coating the raw paper with environmental protection glue, Hot pressing, and laminating 6 to 9 layers of paper to 1 layer paper.
02
Out of shape with die cutting mold (Cutting mold is replaceable) Max Speed 400pcs/Min, Semi-finished products neatly pned up and waiting for collecting.
03
The current machine is operated through a programmable logic controller (PLC) and runs on a servo motor-based system.
04
The Cutting and Laminating machine is equipped with cleaning system for glue roller and glue tray, significantly reduce human burden.
05
The machine has a total of nine stations, each with three stations, and boasts an adjustable roller and bolting system.
06
This high-speed machine has minimal power consumption and maintenance requirements.
07
Two forming stations save product cycle time, with a machine that consumes less power and is PLC-based for easy operation.
08
It features a 5-meter-long heating stations equipped with ceramic heaters, safety sensors, and automatic stacking, If the forming station is inactive, the heating system continues to operate, ensuring smooth product release.
Product Application
Hotels
Schools & Collages
Food & Beverage Factory
Restaurant
Exhibition & Events
Railway & Airports

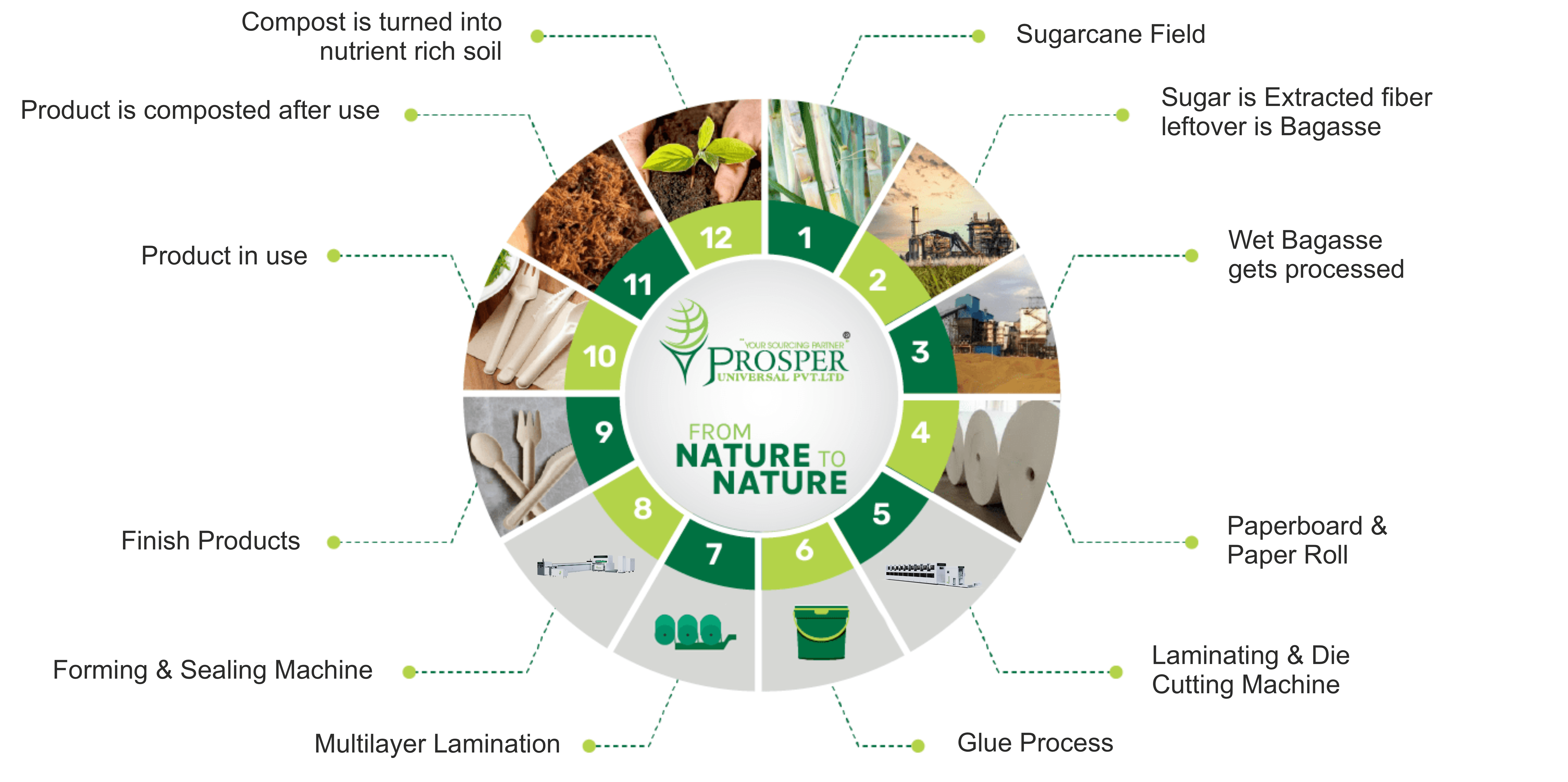

Bagasse Pulp Paper Life Cycle
Prosper products is made from sugarcane bagasse pulp without any plastic or wax coating. It is biodegradable, compostable, and has a strong integrity to hold shape when used with solid and liquid food.
01
Sugarcane Field
02
Sugar is Extracted fiber leftover is Bagasse
03
Wet Bagasse gets processed
04
Paperboard & Paper Roll
05
Laminating & Die Cutting Machine
06
Glue Process
07
Multilayer Lamination
08
Forming & Sealing Machine
09
Finish Products
10
Product in use
11
Product is composted after use
12
Compost is turned into nutrient rich soil
Product Features
Products are made from sugarcane bagasse pulp without any plastic or wax coating. It is biodegradable, compostable, and has a strong integrity to hold shape when used with solid and liquid food.
Oil Resistant
Freezer Free
Biodegradable & Compostable
100% Strength & Durable
Water Resistant
Microwave Safe
100% Agro Waste
Consistent with Quality Product
No Plastic
Environment Friendly
Hygienic & Healthy
